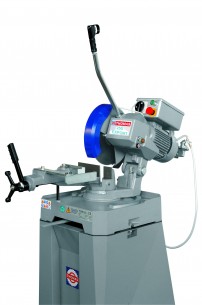

Sägemaschinen - CUT 250
CUT 250
| |
 |
Standart equipment:
| » |
Certificate of conformity and instruction manual according to Machine Directive 98/37 CEE |
| » |
Set of service spanners |
| » |
Bar stop |
Optional equipment:
| » |
Pedestal in steel plate |
| » |
Single-phase motor Kw 0,9 with DMS (Dead Man Switch). |
Technical support:
| » |
Technical support from the local service centre |
| » |
Spare parts delivery is guaranteed for 10 year from the construction date |
|
| |
Technical features and cutting capacity:
|
|
|
|
|
|
|
0°
|
30
|
70
|
65
|
100 x 45
|
|
45°
|
25
|
60
|
55
|
65 x 50
|
| » |
Robust cast-iron bench. |
| » |
Vice and cutting head in cast-iron providing high stability and vibration free cutting. |
| » |
High level machining and finishing of the parts. |
| » |
Electric motor from domestic ISO certificated manufacturers. |
| » |
Reduction unit running in oil bath with hardened worm screw and high quality bronze gear. |
| » |
Electric installation according CEE regulations: switch/speed switch, line push-button, emergency push-button and gripswitch to run the sawdisc. |
| » |
Set of fuses against current overload. Motor protected thermal feeler. |
| » |
Coolant liquid with mechanical pump and crucible. |
| » |
Severe tests on mechanical tolerances, electric installation and final performance test according to UNI EN ISO 9001 Quality System. |
| Technical data |
| Electric motor - three-phase |
Kw |
0,75 - 0,95 |
| Electric motor - single-phase |
Kw |
0,9 |
| Gear-box in oil bath |
Ratio |
1:32 |
| Blade diameter (max.) |
mm |
250 |
| Blade shaft revolution |
rpm |
44 - 88 |
| Blade shaft revolution (single-phase motor) |
rpm |
44 |
| Vice opening |
mm |
105 |
| Coolant tank capacity |
L |
3 |
| Working table height |
mm |
940 |
| Machine dimensions |
mm |
770 x 800 x 940 |
| Weight |
Kg |
90 |
|
