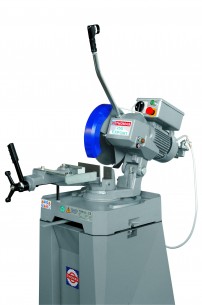

Sawing machines - SUPER CUT 300
SUPER CUT 300
| |
 |
Standart equipment:
| » |
Certificate of conformity and instruction manual according to Machine Directive 98/37 CEE |
| » |
Set of service spanners |
| » |
Bar stop |
Optional equipment:
| » |
Pedestal in steel plate |
| » |
Single-phase motor |
| » |
Low revolution motor 22/44rpm for hard material cutting |
| » |
Pneumatic vice |
Technical support:
| » |
Technical support from the local service centre |
| » |
Spare parts delivery is guaranteed for 10 year from the construction date |
|
| |
Technical features and cutting capacity:
|
|
|
|
|
|
|
0°
|
65
|
90
|
75
|
100 x 65
|
|
45° DX - SX
|
55
|
80
|
70
|
80 x 60
|
| » |
Robust cast-iron bench. |
| » |
Vice and cutting head in cast-iron providing high stability and vibration free cutting. |
| » |
High level machining and finishing of the parts. |
| » |
Electric motor from domestic ISO certificated manufacturers. |
| » |
Reduction unit running in oil bath with hardened worm screw and high quality bronze gear. |
| » |
Electric installation according CEE regulations: switch/speed switch, line push-button, emergency push-button and gripswitch to run the sawdisc. |
| » |
Set of fuses against current overload. Motor protected thermal feeler. |
| » |
Coolant liquid with mechanical pump and crucible. |
| » |
Severe tests on mechanical tolerances, electric installation and final performance test according to UNI EN ISO 9001 Quality System. |
| Technical data |
| Electric motor - three-phase |
Kw |
1,2 - 1,6 |
| Electric motor - three-phase - low revolution |
Kw |
0,9 - 1,3 |
| Electric motor - single-phase |
Kw |
1,5 |
| Gear-box in oil bath |
Ratio |
1:32 |
| Blade diameter (max.) |
mm |
300 |
| Blade diameter (min.) |
mm |
250 |
| Blade shaft revolution |
rpm |
41 - 82 |
| Blade shaft revolution (single-phase motor) |
rpm |
41 |
| Vice opening |
mm |
120 |
| Coolant tank capacity |
L |
5 |
| Working table height |
mm |
980 |
| Machine dimensions |
mm |
1000 x 1080 x 1100 |
| Weight |
Kg |
125 |
|
